Aveo Introduces Crystal Conforma for Mooney
Introducing Crystal Conforma™ for Mooney™

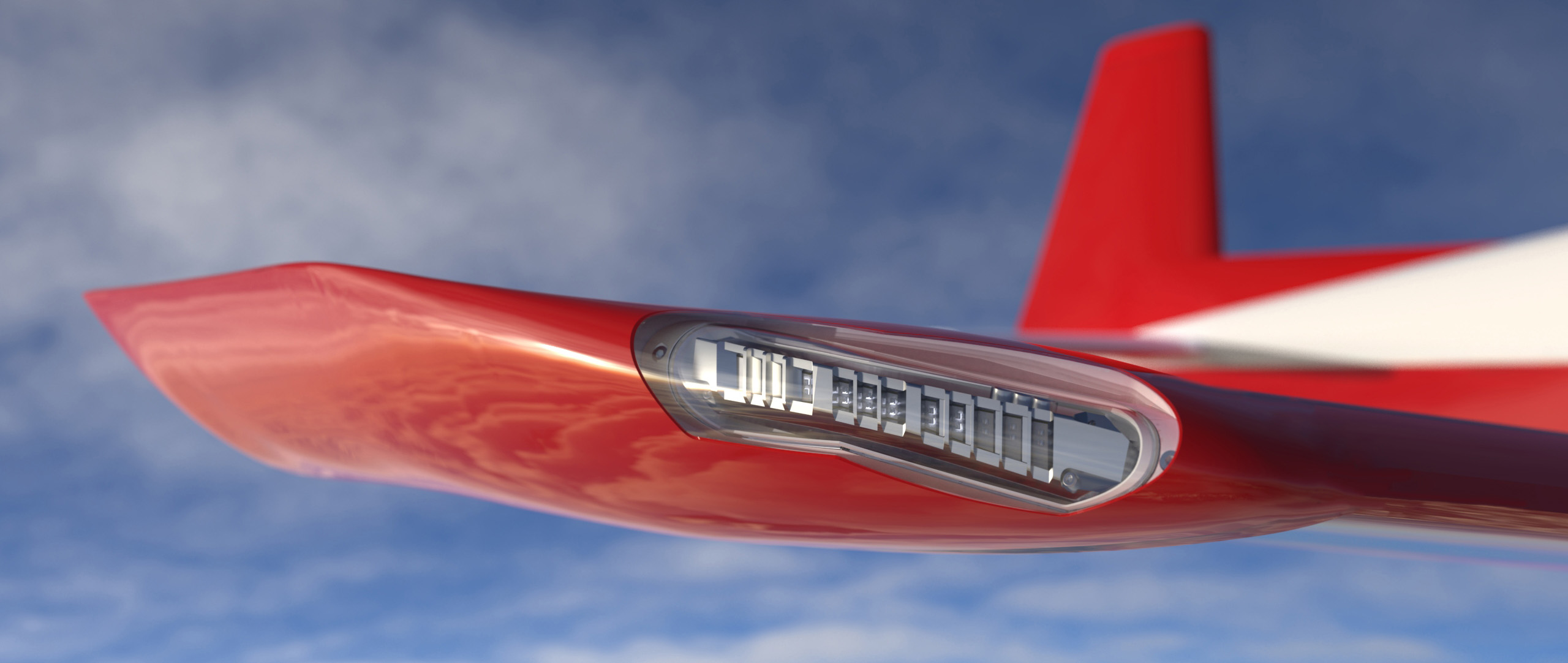

Aveo Engineering is excited to announce the release to EASA MOD Certification pending status of its paradigm-shifting Conforma™ lighting technology now being used by so many of the world’s famous aircraft manufacturers. You too can have the sleekest, brightest, safest aircraft in the sky while decreasing drag at the same time. Replace your factory wingtips with the coolest wingtips on the planet, if not the galaxy. Aveo introduces Crystal Conforma™ for the Mooney™ M20J, M20K, M20L and M20S. The Crystal Conforma™ provide Navigation (Red and Green) and Strobe (White) function.
We are very pleased to introduce the most complete line of options and builds for Mooney aircraft models:
- M20J
- M20K
- M20L
- M20S
Comprehensive Conforma™ Wingtip Module Package
This package includes brand new Aveo factory produced wingtips for your Mooney™ aircraft model, with the Conforma™ Base Package PRE-INSTALLED.
Available in Kevlar/Carbon or Fiberglass Fabric
Conforma™ is not only lighter but significantly stronger than the factory original tips.
Technical Specification
| Voltage range: | 9-36 V DC |
| Voltage protection: | Transient voltage: 60 V, both polarities
Under-voltage lockout: 9 V, not more Over-voltage lockout: 36 V, not less |
| Performance at 12-36VDC, 25°C and 82% DC-DC efficiency: | |
| Output current, not less: | 0.17 A/LED Navigation steady 0.9 A/LED White strobe |
| Output power, not less: | 4.3W, red steady 5 W, green steady 26 W white pulse strobe |
| Input power, not more: | 4.5 W, red steady 7.1 W, green steady 36 W, white strobe |
| Input current, not more: | Nav steady 0.5A at 9V – Red 0.8 A at 9V – Green 0.35A at 14 –Red 0.45A at 14V – Green 0.160A at 28V – Red 0.22A at 28V – Green White strobe 4A at 9V 2.6 at 14V 1.3A at 28V |
Waterproof / Shockproof / Dust-proof
The Conforma™ modules are completed protected from water ingress, dust contamination when installed in a proper airworthy technique of basic fittings and sealing materials, and are virtually shockproof except for high speed impact of hard objects which may damage the outer lens.
